A New Choice for Global RF Sourcing: How Custom Tapered Inductors from China Break the Limits of Broadband Performance and Cost

In 5G base stations, millimeter-wave radar, optical communication modules, and high-speed test instruments, tapered inductors are moving from “niche components” to “critical bottleneck components”.

More and more global procurement engineers are discovering that custom tapered inductors from China not only mean shorter lead times, but also deliver customizable, repeatable high-frequency performance across the 200MHz–40GHz broadband range.

This article uses the typical custom model HALT20005 as a technical anchor to answer one question:
Why should you start seriously evaluating custom tapered inductors from China — right now?

1. Tapered Inductor vs. Standard Inductor: Why Broadband Systems Need It

1.1 What is a Tapered Inductor?

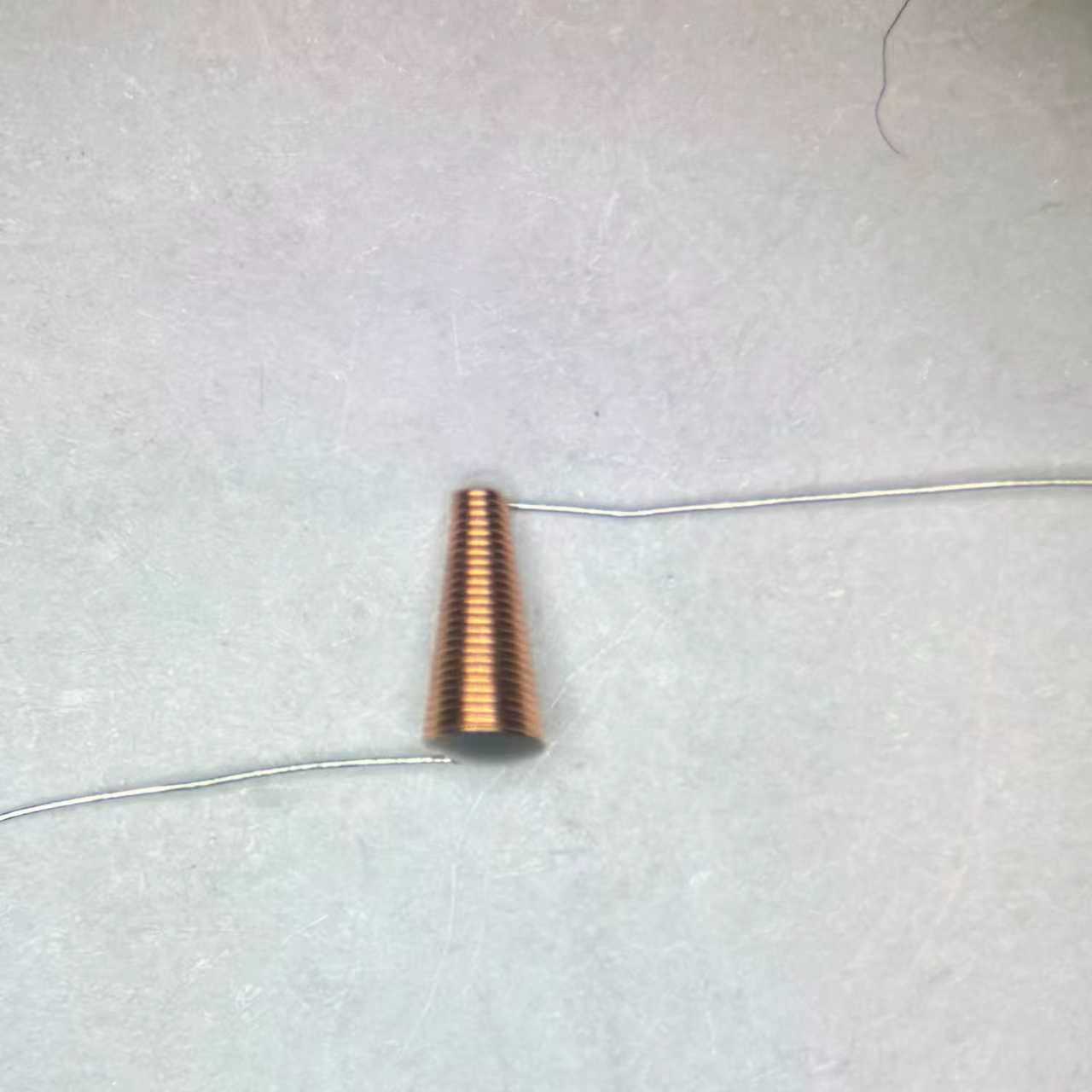

A tapered inductor is a helical inductor with gradually changing wire diameter and spacing. Its small end (tip) is used for high-frequency signal input, while the tapered body transitions toward low frequency/ground. This structure naturally reduces parasitic capacitance and significantly increases the self-resonant frequency.

1.2 Key Advantages of Tapered Inductors

Key takeaway: Broadband performance is the natural moat of tapered inductors, and China’s supply chain is turning them from “expensive specials” into “cost-effective standards”.

2. Key Parameters of Custom Tapered Inductors from China (HALT20005 as Example)

Global sourcing value: 30%–40% cost reduction vs. equivalent performance from Western brands, with small batch customization available.

3. Why Is Global Sourcing Shifting to Custom Tapered Inductors from China?

4. Assembly and Reliability: China Manufacturing Meets International Standards

4.1 Assembly Requirements

• Tip (small end) faces and is perpendicular to the RF signal trace

• Keep the trace lead as short as possible

• Must be fixed with adhesive (for vibration resistance and alignment)

This is not a “suggestion” — it is a mature mass-production requirement.

4.2 Environmental and Storage Conditions

• Operating Temperature: -55℃ ~ +125℃

• Storage: 20–25℃ / 40%–60% RH

• Shelf Life: 1 year after delivery

5. Typical Test Data: Beyond Specs — Real Measurements Matter

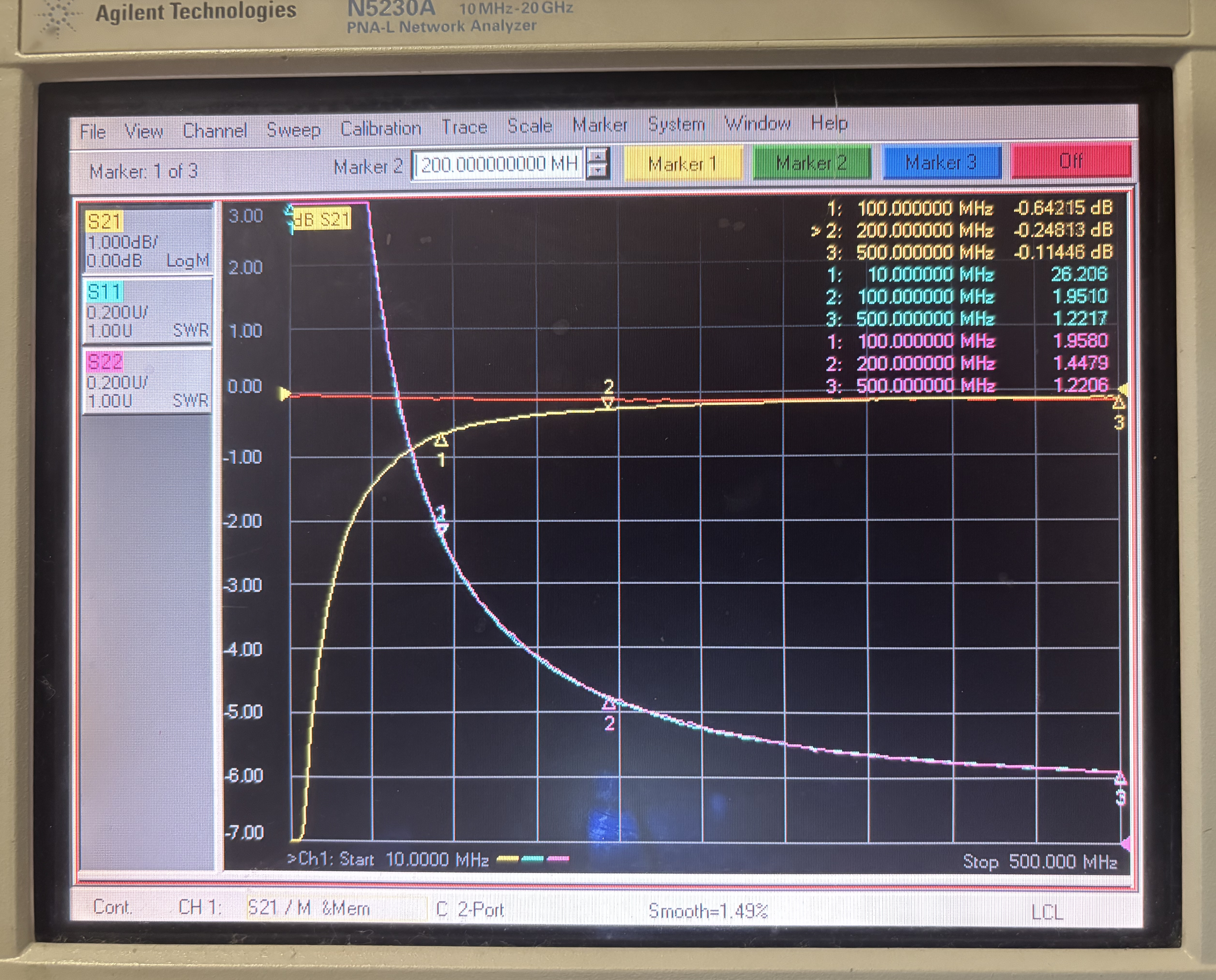

5.1 10MHz – 500MHz

Good low-end flatness, suitable for wideband up/down-conversion biasing.

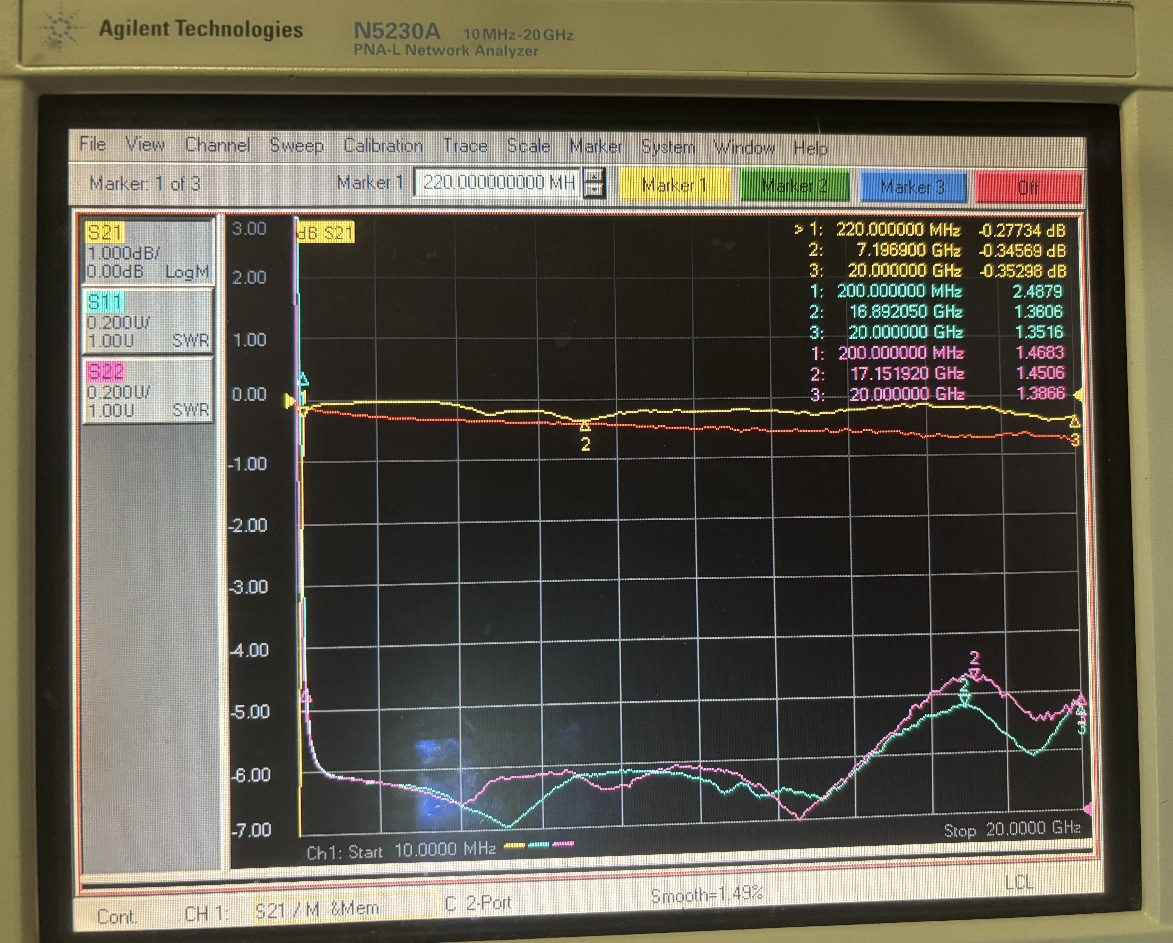

5.2 10MHz – 20GHz (Main Operating Range)

Stable insertion loss and return loss — highest engineering usability.

6. Typical Applications of Custom Tapered Inductors (High-Demand Global Markets)

7. How to Source Custom Tapered Inductors from China — Safely and Efficiently

Recommended Procurement Process

1. Define your parameters
   Inductance, frequency range, current, size, temperature range

2. Use a reference model
   Start with HALT20005 to communicate your custom requirements

3. Request test data
   Ask for S-parameters or real measurement curves

4. Validate with samples
   Small-batch assembly + adhesive fixing + thermal cycling

5. Release mass production
   Confirm lead time and packaging (tape & reel / bulk)

8. Conclusion: Custom Tapered Inductors from China Are Globally Competitive

Tapered inductors are no longer “hard to find or expensive to buy”.
China’s supply chain has become a practical choice for RF engineers worldwide across four key dimensions:

• Broadband performance (200MHz–40GHz)

• Customization capability (L-value, wire gauge, size)

• Fast delivery (2–6 weeks)

• Cost advantage (30%+ reduction)
