91MLA1200503R High Frequency Air-core Inductor, 12 Turns 17nH, 2-20GHz RF Special Inductor 400mA

Share to:

91MLA1200503R air-core inductor is a special type for RF applications, wound with 0.05mm wire diameter for 12 turns with an inner diameter of 0.3mm. The inductance is accurately 17nH±20%, with a maximum withstand current of 400mA, perfectly adapting to the 2-20GHz broadband working scenario. The product has excellent temperature resistance, can operate stably in harsh environments from -55℃ to +125℃, and is suitable for tape welding process. Performance can be guaranteed by glue fixing after assembly. The storage condition is 20-25℃, 40%-60% humidity, with a shelf life of 1 year. Designed for RF signal transmission, the coil is perpendicular to the transmission line and short lead design during assembly, which greatly reduces signal loss and is a high-quality electronic component in the RF and microwave field.

Availability:



Inquire

Product Description

This 91MLA1200503R air-core inductor features core parameters of 12 turns, 0.05mm wire diameter and 0.3mm inner diameter, with an inductance of 17nH±20% and a maximum current carrying capacity of 400mA. Its recommended operating frequency ranges from 2 to 20GHz, meeting the stringent requirements of the high-frequency RF field. It has an operating temperature range of -55℃ to +125℃ with strong environmental adaptability, a 1-year shelf life under specified storage conditions, and is compatible with tape welding processes. For assembly, the coil body should be perpendicular to the RF transmission line with shortened lead wires, and fixed with glue after debugging to effectively ensure the stability of signal transmission. Exquisitely crafted with stable performance, this product is an ideal choice for applications such as feed chokes in RF and microwave equipment, boasting reliable quality and guaranteed after-sales service.

Name	Air Core Inductor
Model	91MLA1200503R
Number of Turns	12
Wire Diameter	0.05mm
Inner Diameter	0.3mm
Inductance	17nH±20%
Maximum Withstand Current	400mA
Recommended Operating Frequency	2-20GHz
Operating Temperature	-55℃∽+125℃

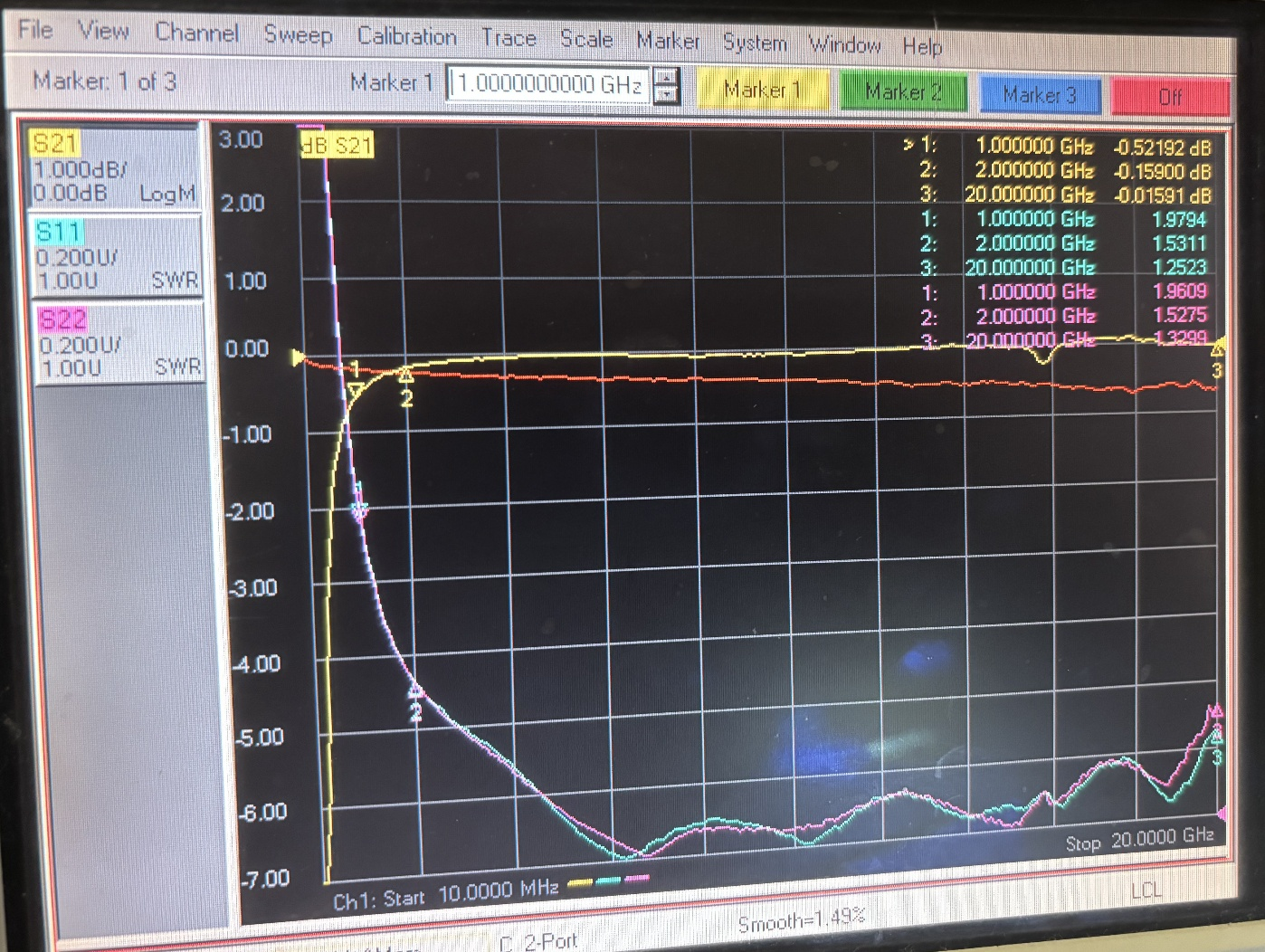

Remarks: 1. Storage Conditions: 20-25℃, 40%-60% humidity;2. Shelf Life: 1 year after delivery under specified storage conditions;3. Suitable for tape soldering process;4. Assembly precautions and test data are shown on the next page.

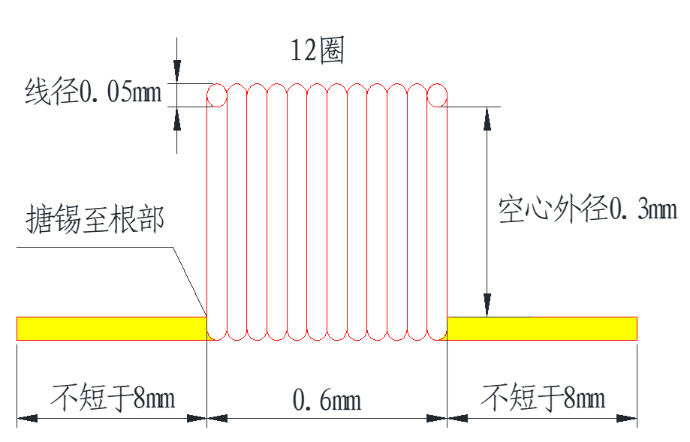

Overall Dimensions

b8b30bd84303dce029a136e343d9f526

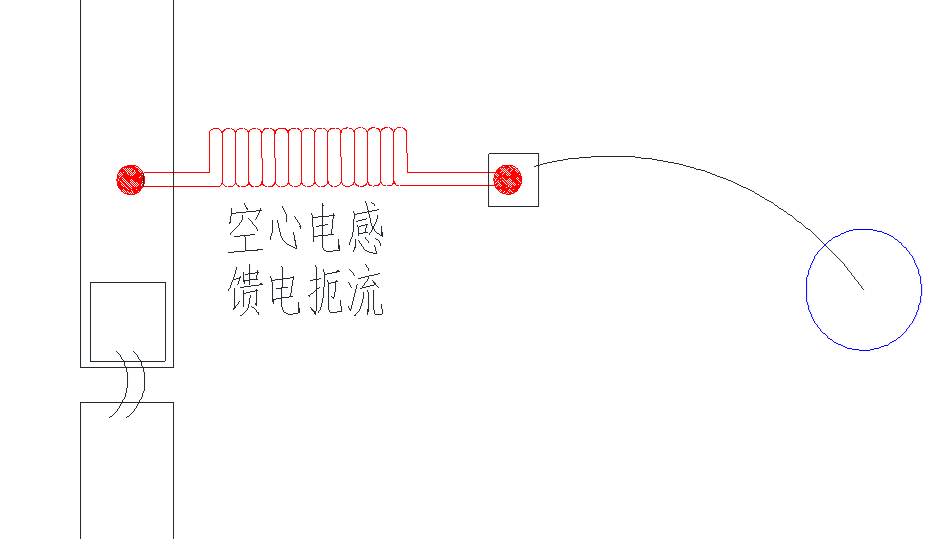

Assembly Precautions

During assembly, the coil body should be as perpendicular as possible to the RF signal transmission line, the leads at the transmission line end should be kept as short as possible, and it is recommended to fix with glue after debugging.

3ea07e40c4b444cba47714271f674b07
