Invisible Champions in the Microwave World

The Story of Chip Capacitors, Conical Inductors, and Air-Core Inductors

Have you ever wondered—when you make a phone call, when automotive radar detects obstacles, or when satellites transmit high-definition images—what is quietly supporting these “invisible signals”?

The answer lies in tiny components known as microwave components.

Today, let’s step into the microwave world and meet three “invisible champions”: chip capacitors, conical inductors, and caterpillar air-core inductors. Though extremely small, they play a critical role and are indispensable “supporting heroes” in high-frequency circuits.

1. What is Microwave? A Quick Background

Before we dive in, let’s first understand what “microwave” means.

Simply put, microwaves are electromagnetic waves with very high frequencies. They travel fast, propagate over long distances, and can penetrate many materials. That’s why they are widely used in radar, satellites, and 5G communications.

However, high frequencies also come with three major challenges:

• Parasitic parameters: At high frequencies, even a simple wire behaves like an inductor, and solder joints can act like capacitors.

• Skin effect: Current tends to flow along the surface of conductors. The higher the frequency, the greater the loss.

• Resonance: Inductors and capacitors may resonate at certain frequencies, potentially causing circuit failure.

To perform well in the microwave world, components must be pure, stable, and resistant to interference—exactly where our three stars excel.

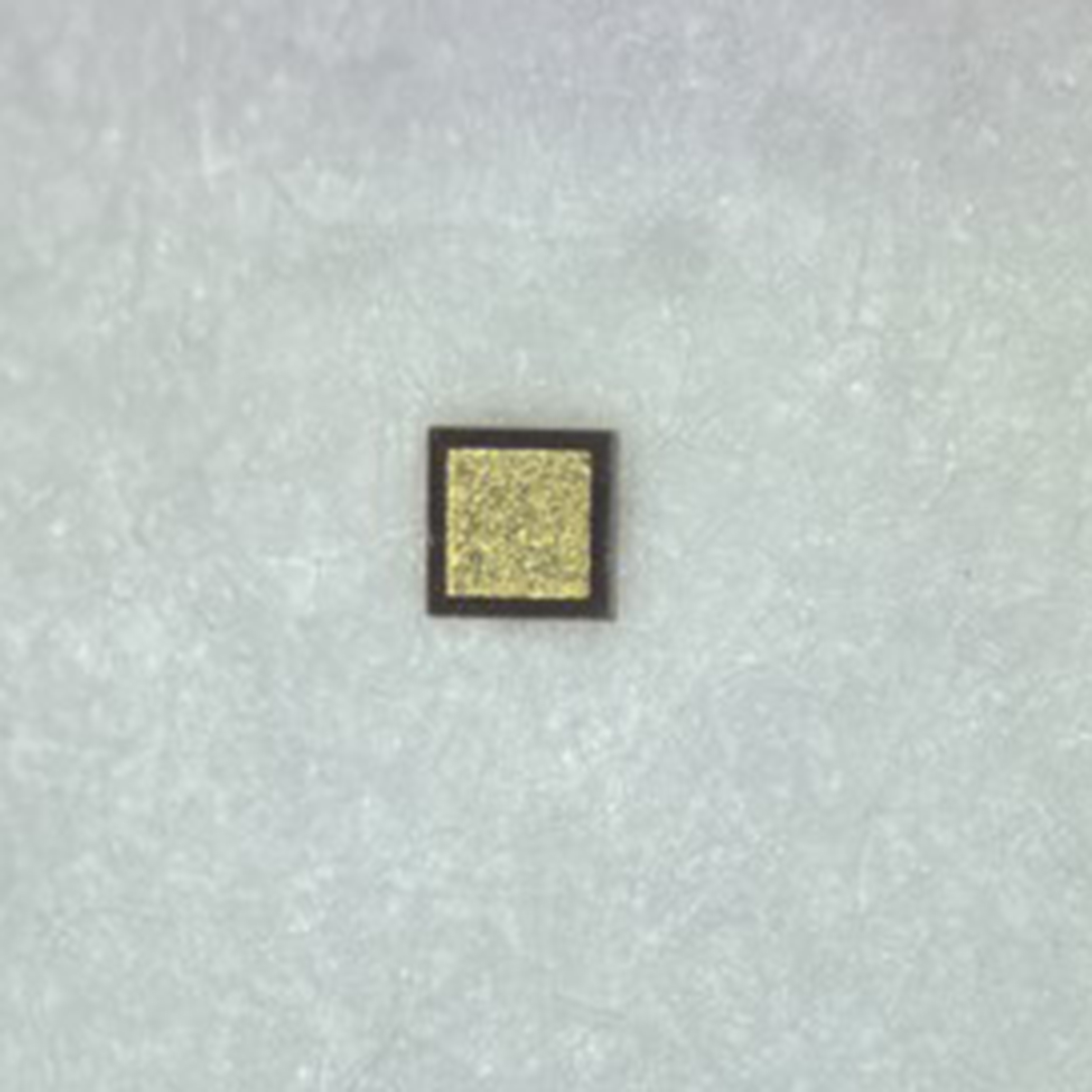

2. Chip Capacitors: The “Gatekeepers” of Microwave Frequencies

Chip capacitors (single-layer ceramic capacitors, SLCs) can be imagined as ultra-thin ceramic sandwiches: metal electrodes on both sides with a ceramic dielectric in between.

They are incredibly thin—typically only 0.1–0.5 mm—and can easily be placed next to chips.

Key Advantages:

• Ultra-low inductance (ESL): Without multilayer stacking, they maintain true capacitive behavior even at high frequencies.

• Suitable for gold wire bonding: Surface finishing allows direct connection with gold wires, ideal for high-density applications.

• High reliability in harsh environments: Commonly used in aerospace, missiles, and satellite communications.

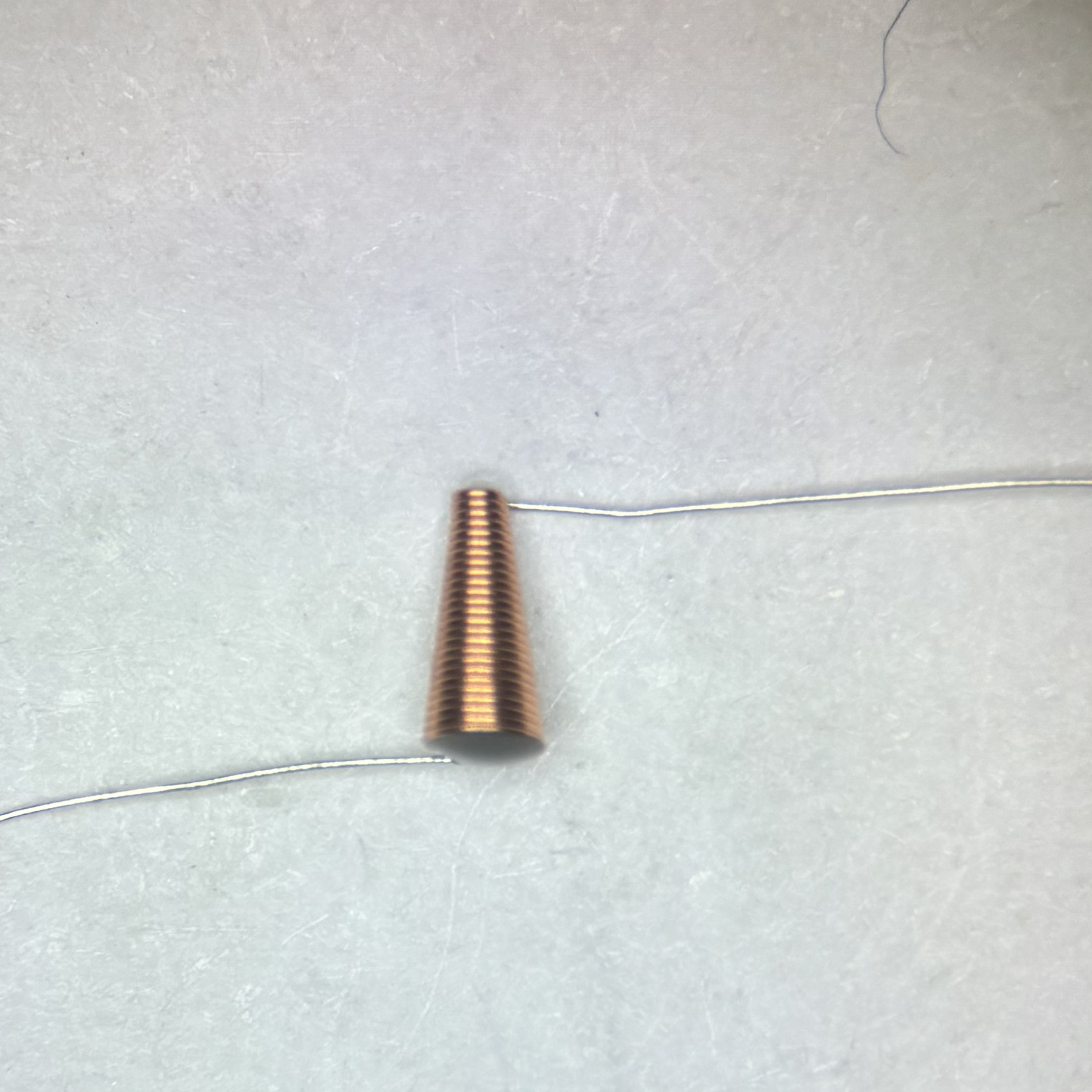

3. Conical Inductors: The Wideband “All-Rounders”

If traditional inductors are “narrowband players,” conical inductors are true wideband champions.

They are shaped like tiny pyramids, wound with ultra-fine enameled wire—wide at the base and narrow at the top—with a magnetic core inside.

They can operate across an ultra-wide frequency range from 10 MHz to 40 GHz, without self-resonance.

What Do They Do?

• Bias networks: Provide DC power while allowing high-frequency signals to pass unaffected.

• Replace multiple inductors: One conical inductor can cover a wide frequency range, simplifying circuit design.

• Applications: Optical modules, test instruments, and satellite terminals.

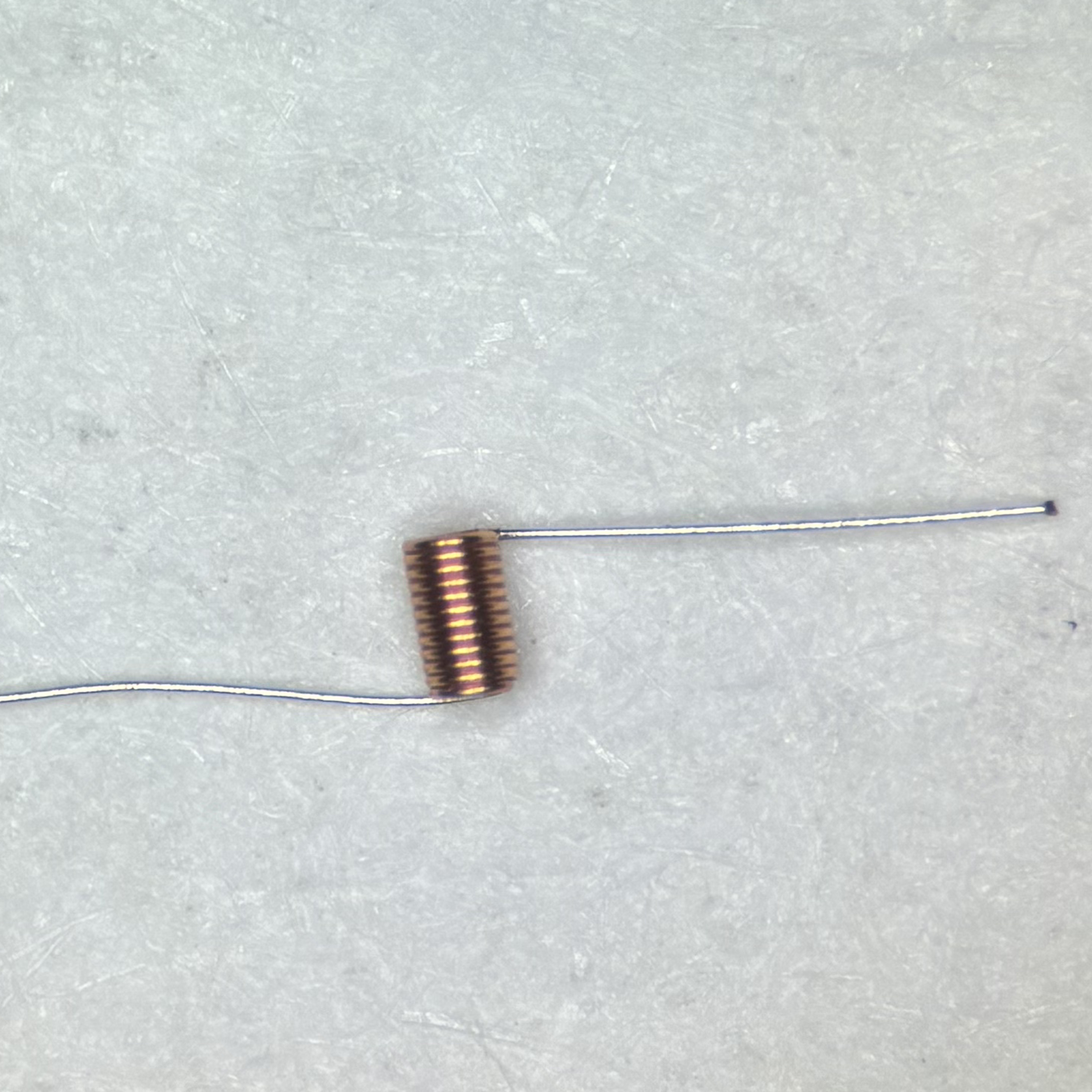

4. Caterpillar Air-Core Inductors: The “Pure Performers” of High Frequencies

As the name suggests, air-core inductors are coils without a magnetic core. They are made using ultra-fine enameled wire or gold wire, relying entirely on air as the medium.

Why no magnetic core?

Because magnetic cores can saturate and introduce losses at high frequencies. Removing the core results in better speed and stability.

Advantages:

• Excellent high-frequency performance: Can operate up to tens of GHz.

• High Q factor: Higher Q means lower loss and cleaner signals.

• Precise inductance values: Ideal for impedance matching and resonant circuits.

Applications:

Widely used in base stations, Bluetooth modules, and LNA (low-noise amplifier) input matching circuits.

5. Quick Comparison of the Three Components
