The HAMLT6000503R tapered inductor is a high-performance passive component dedicated to RF applications with excellent core parameters: inductance of 1400nH±20%, wire diameter of 0.05mm, maximum rated current of 200mA. It can operate stably in a wide frequency range of 20MHz-40GHz with an operating temperature of -55℃ to +125℃, featuring outstanding environmental adaptability. Suitable for soldering process, it needs to be stored at 20-25℃ with 40%-60% humidity, with a shelf life of 1 year after delivery. There are clear assembly specifications: the cone tip must face and be perpendicular to the RF signal transmission line, the lead at the transmission line end should be as short as possible, and it must be fixed with glue to ensure circuit stability. Tested by professional vector network analyzers, the inductor has an optimal S21 parameter of -0.01006dB in 10MHz-500MHz band, maintains a low insertion loss in 10MHz-20GHz band, and the test data at 40GHz band is for reference only. With excellent overall insertion loss performance, its SWR and S11 parameters meet the design requirements of RF circuits. It is a high-quality supporting component for feed choke RF circuits, applicable to the R & D and production of various RF-related electronic equipment.

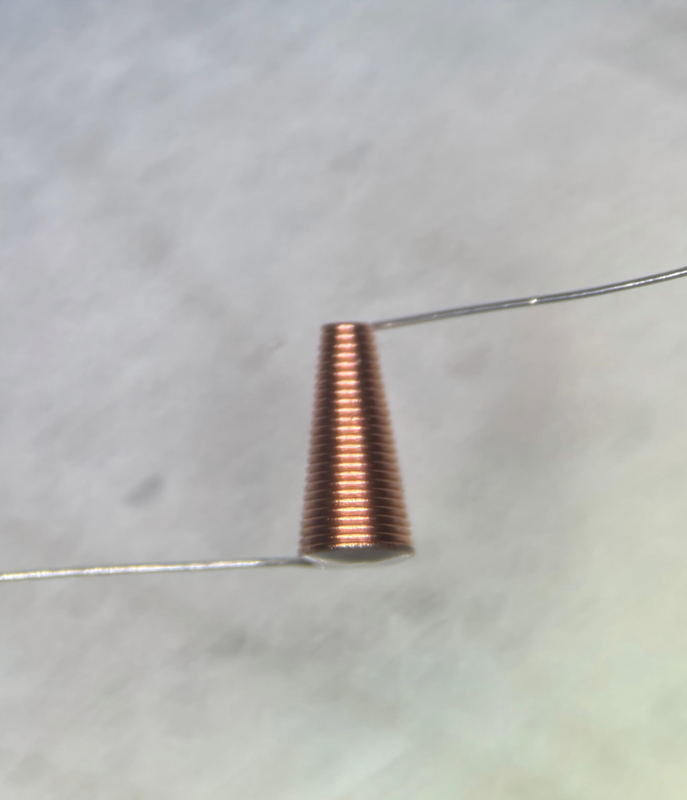

| Name | Tapered Inductor |
| Model | HAMLT6000503R |
| Inductance | 1400nH±20% |
| Wire Diameter | 0.05mm |
| Maximum Withstand Current | 200mA |
| Operating Frequency | 20MHz-40GHz |
| Operating Temperature | -55℃ ~ +125℃ |
Storage conditions: 20-25℃, 40%-60% humidity;
Shelf life: 1 year after delivery under the above storage conditions;
Suitable for tape welding process;
See the next page for assembly precautions and test data.
Assembly Precautions
When assembling, the cone tip (small end) shall face and be perpendicular to the RF signal transmission line, the lead wire at the transmission line end shall be as short as possible, and the tapered inductor must be fixed with glue.
Test Data for 10MHz-500MHz
Test Data for 10MHz-20GHz
