The 91MCC100G single-side edge-retained chip capacitor is R&D-designed exclusively for the RF and microwave field with stable performance of core parameters. Its capacitance tolerance is controlled within ±10% and the withstand voltage reaches 100V, which can meet the application requirements of medium and high-voltage circuits. The product adopts a precious metal composite plating process, and the double-layer high-thickness plating ensures excellent electrical conductivity and corrosion resistance, making it suitable for industrial-grade wide-temperature working environments. It is compatible with the bonding process, featuring convenient operation and firm adhesion. During welding, keeping the welding wire at least 25µm away from the electrode edge can effectively prevent electrode shedding and improve operational reliability. The stringent storage standards and 1-year shelf life ensure no performance degradation during product storage and service life. This product is widely used for circuit matching of electronic equipment such as communication systems, radars and RF modules.
| Name | Chip Capacitor |
| Model | 91MCC100G |
| Type | Single-side Edge-retained Type |
| Capacitance | 10pF±10%@1kHz,1Vrms,25°C, No DC Bias |
| Withstand Voltage | 100V |
| Operating Temperature | -55℃ ~ +125℃ |
| Plating - Upper Layer | TiW-Au 2.5µm Min |
| Plating - Bottom Layer | TiW-Pt-Au 2.5µm Min |
| Overall Dimensions | 0.20, 0.25, 0.12µm |
| Storage Conditions | 20-25℃, 40%-60% Humidity |

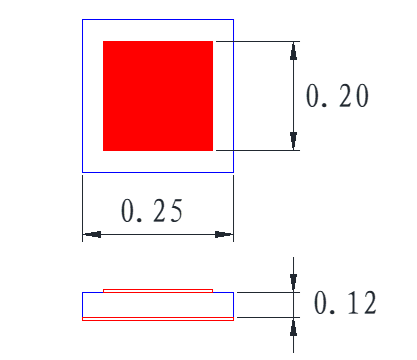

Overall Dimensions
Storage conditions: 20-25℃, 40%-60% humidity;
Shelf life: 1 year after delivery under the above storage conditions;
Suitable for bonding process: use conductive adhesive H20E and bake at 120℃ for 30 minutes;
The welding position of the welding wire shall be 25µm or more from the edge of the electrode to prevent electrode shedding.
The 91MCC100G single-side edge-retained chip capacitor is R&D-designed exclusively for the RF and microwave field with stable performance of core parameters. Its capacitance tolerance is controlled within ±10% and the withstand voltage reaches 100V, which can meet the application requirements of medium and high-voltage circuits. The product adopts a precious metal composite plating process, and the double-layer high-thickness plating ensures excellent electrical conductivity and corrosion resistance, making it suitable for industrial-grade wide-temperature working environments. It is compatible with the bonding process, featuring convenient operation and firm adhesion. During welding, keeping the welding wire at least 25µm away from the electrode edge can effectively prevent electrode shedding and improve operational reliability. The stringent storage standards and 1-year shelf life ensure no performance degradation during product storage and service life. This product is widely used for circuit matching of electronic equipment such as communication systems, radars and RF modules.
| Name | Chip Capacitor |
| Model | 91MCC100G |
| Type | Single-side Edge-retained Type |
| Capacitance | 10pF±10%@1kHz,1Vrms,25°C, No DC Bias |
| Withstand Voltage | 100V |
| Operating Temperature | -55℃ ~ +125℃ |
| Plating - Upper Layer | TiW-Au 2.5µm Min |
| Plating - Bottom Layer | TiW-Pt-Au 2.5µm Min |
| Overall Dimensions | 0.20, 0.25, 0.12µm |
| Storage Conditions | 20-25℃, 40%-60% Humidity |
Overall Dimensions
Storage conditions: 20-25℃, 40%-60% humidity;
Shelf life: 1 year after delivery under the above storage conditions;
Suitable for bonding process: use conductive adhesive H20E and bake at 120℃ for 30 minutes;
The welding position of the welding wire shall be 25µm or more from the edge of the electrode to prevent electrode shedding.
