The HAMLT2001503R tapered inductor is tailor-made for high-frequency RF applications with excellent core parameter performance. The inductance is 160nH±20%, the wire diameter is 0.15mm, and the maximum current resistance is 800mA, which can meet the current and inductance requirements of RF circuits. The product's operating frequency covers 200MHz-20GHz, with strong temperature adaptability, and its performance does not attenuate in a wide temperature range of -55℃ to +125℃, adapting to various harsh working environments. It should be stored at 20-25℃ and 40%-60% humidity with a shelf life of 1 year, and is suitable for soldering process. There are clear assembly specifications: the cone tip must be vertically oriented to the RF signal transmission line, the lead at the transmission line end should be shortened as much as possible, and it must be fixed with glue to ensure the feed choking effect. Tested by a professional network analyzer, the inductor has an S21 loss as low as -0.06dB in the 10MHz-500MHz band, stable transmission performance in the 10MHz-20GHz band, and the test data in the 40GHz band can be used for reference. The overall SWR index is excellent, making it a high-quality basic component in the fields of RF communication and microwave circuits.

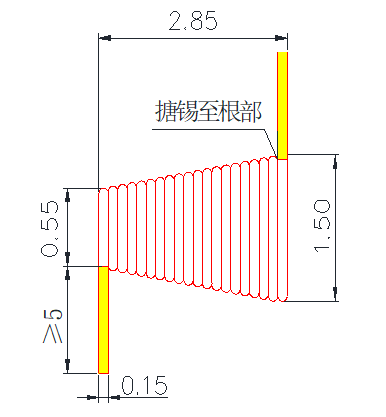

| Name | Tapered Inductor |
| Model | HAMLT2001503R |
| Inductance | 160nH±20% |
| Wire Diameter | 0.15mm |
| Maximum Withstand Current | 800mA |
| Operating Frequency | 200MHz-20GHz |
| Operating Temperature | -55℃ ~ +125℃ |
Storage conditions: 20-25℃, 40%-60% humidity;
Shelf life: 1 year after delivery under the above storage conditions;
Suitable for tape welding process;
See the next page for assembly precautions and test data.

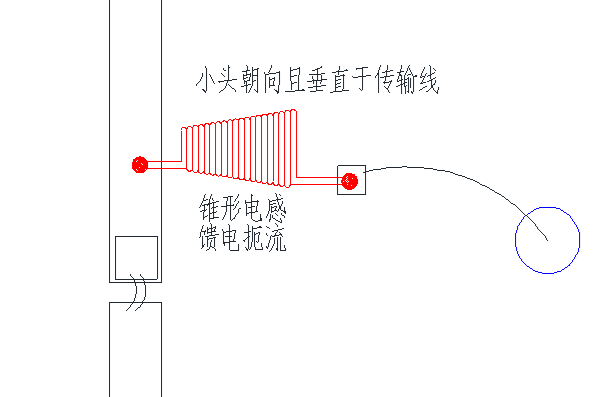

Assembly Precautions

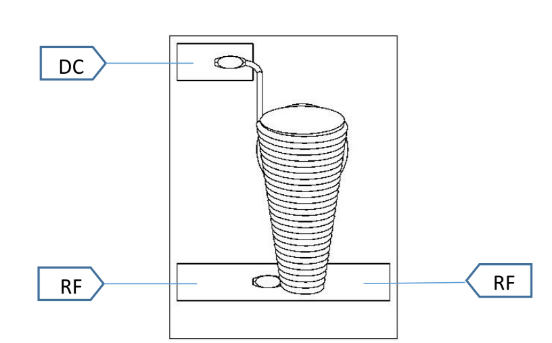

When assembling, the cone tip (small end) shall face and be perpendicular to the RF signal transmission line, the lead wire at the transmission line end shall be as short as possible, and the tapered inductor must be fixed with glue.

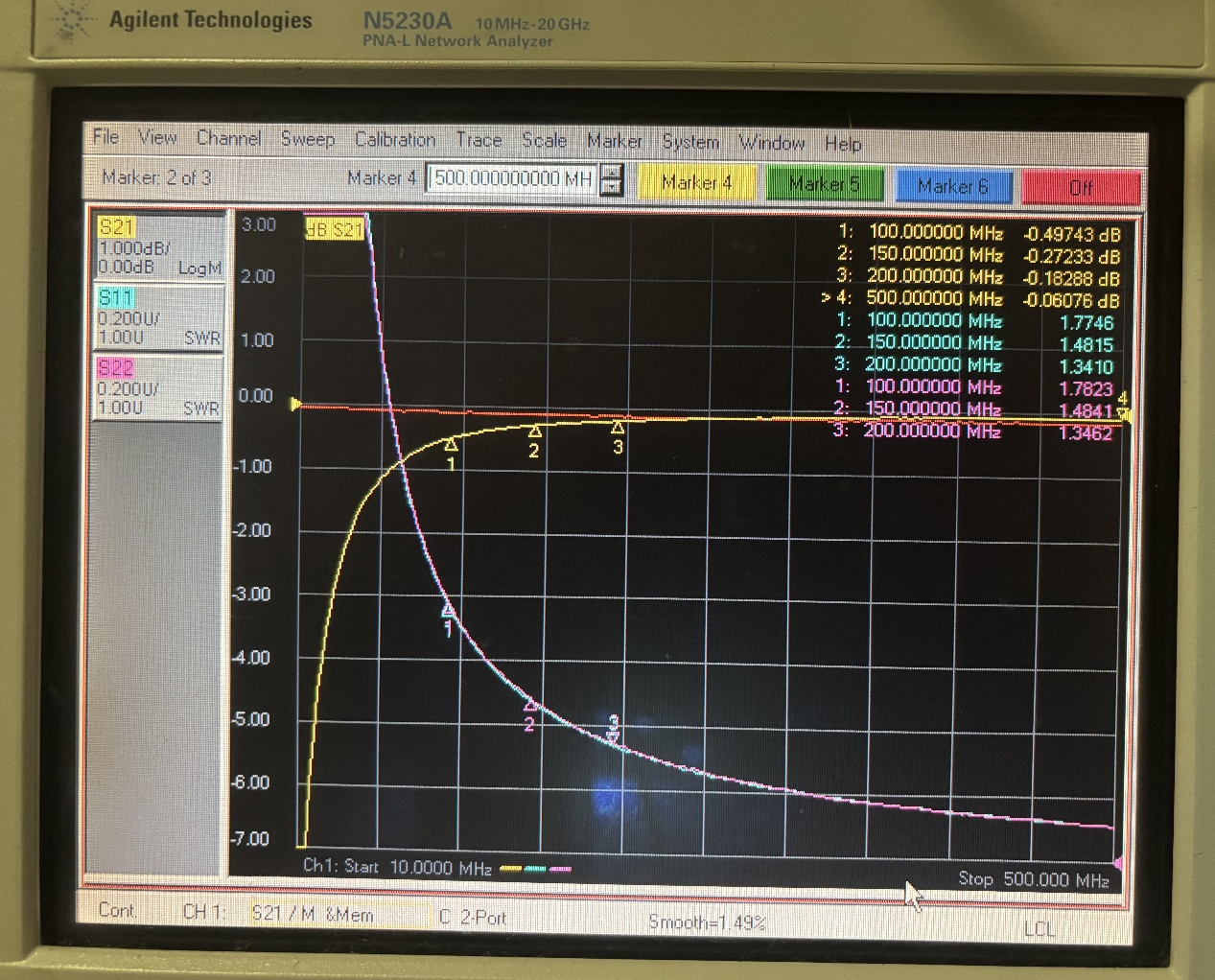

Test Data for 10MHz-500MHz

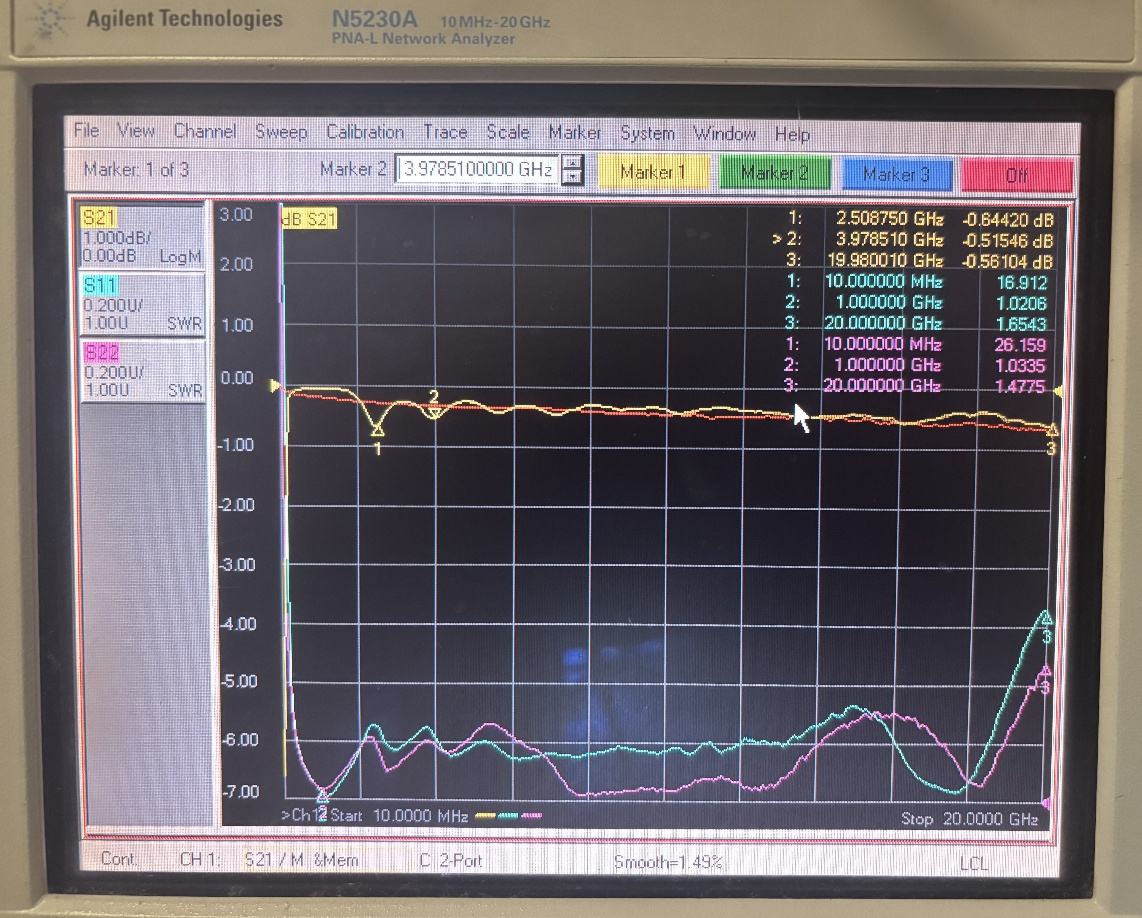

Test Data for 10MHz-20GHz
