Double-Sided Edge-Retained Chip Capacitor 91MCC101D High Temperature and High Voltage Resistant SMD Capacitor

91MCC101D double-sided edge-retained chip capacitor is an electronic component with excellent performance and outstanding reliability, featuring strict control of capacitance accuracy. Under the standard test conditions of 1kHz, 1Vrms, 25℃ without DC bias, the capacitance is stably maintained at 100pF±20%, meeting the capacitance parameter requirements of precision circuits. The product has a withstand voltage of 100V and a wide operating temperature range from -55℃ to +125℃, capable of stable operation in extreme high and low temperature environments with good environmental tolerance. Both upper and lower layers adopt TaN/TiW/Ni/Au composite plating with a minimum thickness of 2.5μm. The solid plating structure effectively improves the anti-shedding performance and service life of electrodes. The product is suitable for professional bonding process, and firm bonding can be achieved by using the designated conductive adhesive H20E with baking at 120℃ for 30 minutes. During welding, electrode shedding can be avoided when the welding wire is ≥25μm from the electrode edge, with standardized and easy-to-implement operation. In addition, the product has a shelf life of 1 year after delivery under the storage conditions of 20-25℃ and 40%-60% humidity, with high storage stability and full-process guarantee of service performance. From performance parameters to process adaptation, this capacitor fully takes into account stability and practicality, and is suitable for various circuit scenarios with high requirements for component reliability.

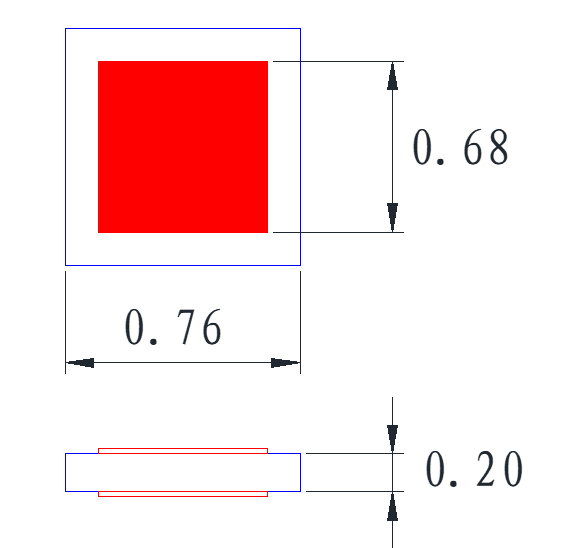

Overall Dimensions

Remarks:

1. Storage Conditions: 20-25℃, 40%-60% humidity;

2. Shelf Life: 1 year after delivery under storage conditions;

3. Suitable for bonding process, conductive adhesive H20E, baking at 120℃ for 30 minutes;

4. The welding position of the welding wire should be 25µm or more away from the electrode edge to avoid electrode falling off.
