This 91MCC471A chip capacitor adopts a double-side edge-retained design, being a highly adaptable precision electronic component with a capacitance accuracy controlled within ±20%, meeting the capacitance parameter requirements of conventional circuits. The 50V withstand voltage ensures the safety of circuit operation. The coating adopts a multi-layer metal composite structure, balancing electrical conductivity and structural stability, and can work stably in a wide temperature range of -55℃~+125℃, applicable to circuit boards in communication, industrial control, consumer electronics and other fields. The product is suitable for bonding process with easy operation, mild storage requirements and long shelf life. There are clear process specifications for welding operation, and strict compliance can effectively improve the use stability of the product and reduce the occurrence of faults.
| Name | Chip Capacitor |
| Model | 91MCC471A |
| Type | Double-Side Edge-Retained Type |
| Capacitance | 470pF±20%@1kHz,1Vrms,25°C,No DC Bias |
| Withstand Voltage | 50V |
| Operating Temperature | -55℃~+125℃ |
| Coating - Upper Layer | TaN/TiW/Ni/Au 2.5µm Min |
| Coating - Lower Layer | TaN/TiW/Ni/Au 2.5µm Min |

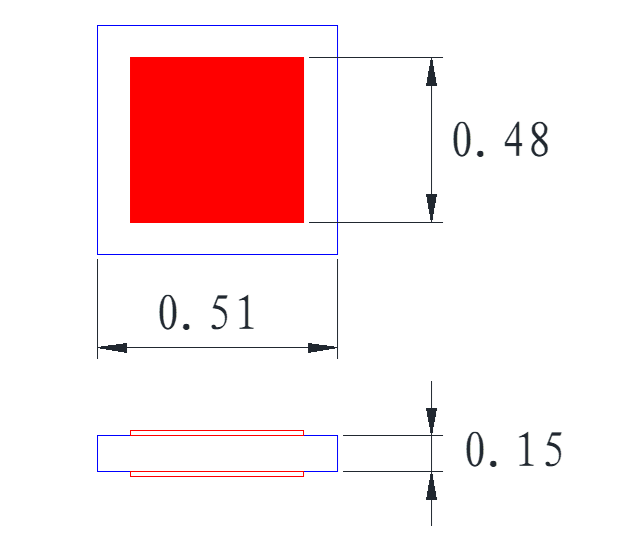

Overall Dimensions
Remarks:
Storage Conditions: 20-25℃, 40%-60% humidity;
Shelf Life: 1 year after delivery under storage conditions;
Suitable for bonding process, conductive adhesive H20E, baking at 120℃ for 30 minutes;
The welding position of the welding wire should be 25µm or more away from the electrode edge to avoid electrode falling off.
