Revolutionary HAMLA0600503R Air-core Inductor, Precision-matched for 5–20GHz High-frequency Applications

Revolutionary 91MLA0600503R Air-core Inductor, Precision-matched for 5–20GHz High-frequency Applications

Share to:

Air Core Inductor HAMLA0600503R is a high-performance passive electronic component focusing on high-frequency scenarios. Adopting precision winding technology, the product features accurately controllable core parameters: 6 turns, a wire diameter of 0.05mm, an inner diameter of 0.3mm, an inductance stably maintained at 7nH±20%, and a maximum current capacity of 400mA. It can meet the wide-frequency operating requirements of 5-20GHz and operate stably within the extreme temperature range of -55℃~+125℃.

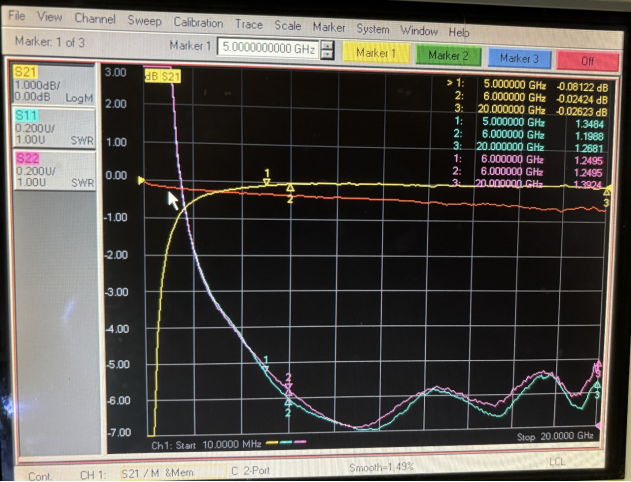

This product is suitable for the tape soldering process. It should be stored in an environment with a temperature of 20-25℃ and a humidity of 40%-60%, with a shelf life of 1 year. After standardized operations during assembly (the coil is perpendicular to the RF transmission line, short lead design, and glue fixing), the reliability of the high-frequency circuit system can be guaranteed. It has excellent electrical performance test results in the 10MHz-20GHz frequency band and is a core supporting component for RF equipment.

Availability:



Inquire

Product Description

As a dedicated air core inductor for high-frequency RF applications, the HAMLA0600503R achieves a high unity of performance and stability through exquisite manufacturing processes and strict quality control standards. In terms of structural design, the product adopts 6-turn precision winding, and the precise matching of wire diameter and inner diameter ensures the consistency of inductance. The inductance specification of 7nH±20% can accurately meet the impedance requirements of high-frequency circuits.

In terms of electrical performance, the product has a maximum current capacity of 400mA, which can satisfy the current-carrying demands of medium and low-power high-frequency scenarios. Its recommended operating frequency covers 5-20GHz, spanning the ultra-wideband application range, and it exhibits no performance attenuation within the wide temperature range of -55℃~+125℃, making it suitable for complex working conditions in various fields such as industry and communications.

Regarding process adaptation and usage guarantee, this inductor is specifically designed for the tape soldering process, with clear storage conditions (20-25℃, 40%-60% humidity) and a shelf life of up to 1 year under such environments. Professional specifications must be followed during the assembly process: the coil body should be perpendicular to the RF signal transmission line, the leads at the transmission line end should be shortened as much as possible to reduce signal loss, and it is recommended to fix the coil with glue after debugging to avoid performance impact caused by vibration. Tested in the 10MHz-20GHz frequency band, the product features low signal transmission loss and excellent impedance matching, which can effectively improve the overall performance of RF systems. It is widely applied in high-end electronic equipment such as microwave communication devices and RF modules.

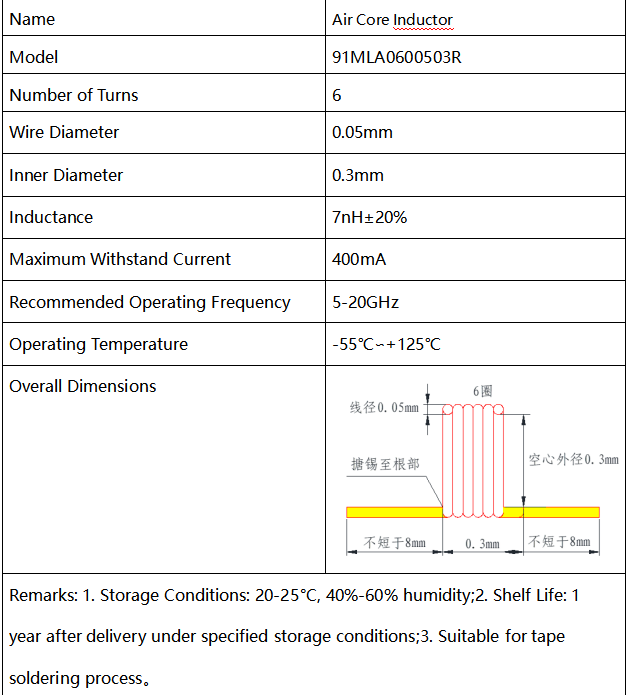

Air Core Inductor HAMLA0600503R Product Specification Sheet

Name	Air Core Inductor
Model	HAMLA0600503R
Number of Turns	6
Wire Diameter	0.05mm
Inner Diameter	0.3mm
Inductance	7nH±20%
Maximum Withstand Current	400mA
Recommended Operating Frequency	5-20GHz
Operating Temperature	-55℃～+125℃
Remarks: 1. Storage Conditions: 20-25℃, 40%-60% humidity;2. Shelf Life: 1 year after delivery under specified storage conditions;3. Suitable for tape soldering process;4. Assembly precautions and test data are shown on the next page.

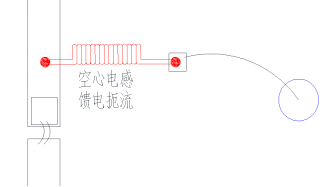

During assembly, the coil body should be as perpendicular as possible to the RF signal transmission line, the leads at the transmission line end should be kept as short as possible, and it is recommended to fix with glue after debugging.
