The 91MCC102A chip capacitor adopts a double-sided edge reserved design with a capacitance accuracy of ±20% and a withstand voltage of 50V. It can work stably in a wide temperature range of -55℃~+125℃, meeting the requirements of harsh working conditions. The plating layer is made of high-spec TaN/TiW/Ni/Au composite material with a thickness of not less than 2.5µm, which is anti-oxidation and anti-wear, improving the service life of the product. The product is suitable for conductive adhesive bonding process, with clear anti-falling requirements for welding operation, clear storage conditions and long shelf life. It is an excellent choice for capacitor components in precision electronic equipment and suitable for the capacitor matching requirements of various circuits.
| Name | Chip Capacitor |
| Model | 91MCC102A |

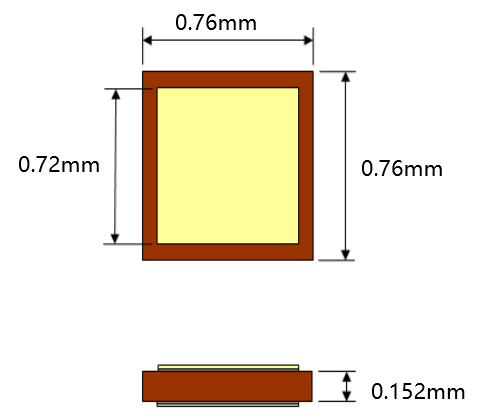

| Type | Double-sided Edge Reserved Type |
| Capacitance | 1000pF±20%@1kHz,1Vrms,25°C,No DC Bias |
| Withstand Voltage | 50V |
| Operating Temperature | -55℃~+125℃ |
| Plating - Upper Layer | TaN/TiW/Ni/Au 2.5µm Min |
| Plating - Bottom Layer | TaN/TiW/Ni/Au 2.5µm Min |
Remarks:
Storage Conditions: 20-25℃, 40%-60% humidity;
Shelf Life: 1 year after delivery under storage conditions;
Suitable for bonding process, conductive adhesive H20E, baking at 120℃ for 30 minutes;
The welding position of the welding wire should be 25µm or more away from the electrode edge to avoid electrode falling off.
The 91MCC102A chip capacitor adopts a double-sided edge reserved design with a capacitance accuracy of ±20% and a withstand voltage of 50V. It can work stably in a wide temperature range of -55℃~+125℃, meeting the requirements of harsh working conditions. The plating layer is made of high-spec TaN/TiW/Ni/Au composite material with a thickness of not less than 2.5µm, which is anti-oxidation and anti-wear, improving the service life of the product. The product is suitable for conductive adhesive bonding process, with clear anti-falling requirements for welding operation, clear storage conditions and long shelf life. It is an excellent choice for capacitor components in precision electronic equipment and suitable for the capacitor matching requirements of various circuits.
| Name | Chip Capacitor |
| Model | 91MCC102A |
| Type | Double-sided Edge Reserved Type |
| Capacitance | 1000pF±20%@1kHz,1Vrms,25°C,No DC Bias |
| Withstand Voltage | 50V |
| Operating Temperature | -55℃~+125℃ |
| Plating - Upper Layer | TaN/TiW/Ni/Au 2.5µm Min |
| Plating - Bottom Layer | TaN/TiW/Ni/Au 2.5µm Min |
Remarks:
Storage Conditions: 20-25℃, 40%-60% humidity;
Shelf Life: 1 year after delivery under storage conditions;
Suitable for bonding process, conductive adhesive H20E, baking at 120℃ for 30 minutes;
The welding position of the welding wire should be 25µm or more away from the electrode edge to avoid electrode falling off.
