The 91MCC101G is a single-sided edge-retained chip capacitor engineered exclusively for high-frequency circuits. It features a core capacitance of 100pF with a tolerance of ±20% under specified test conditions, a rated withstand voltage of 50V, and delivers stable performance across an ultra-wide temperature range from -55℃ to +125℃. The product is constructed with a dual-layer high-quality metal plating system: the upper TiW-Au layer and bottom Ti-Pt-Au layer both meet the minimum thickness specifications, ensuring a highly reliable electrode structure. With a compact micro-size of 0.38×0.38×0.15and professionally tested by the N5230A, it is ideally suited for coupling and DC blocking applications in the 0.4-40GHz frequency band. It is compatible with H20E conductive adhesive for bonding, has defined temperature and humidity requirements for storage, and requires the welding wire to be kept clear of the electrode edges during soldering to ensure operational stability. This capacitor serves as a premium supporting component for microwave circuits.
| Name | Chip Capacitor |
| Model | 91MCC101G |
| Type | Single-sided Edge Retained Type |
| Capacitance | 100pF±20% @1kHz, 1Vrms, 25°C, No DC Bias |
| Withstand Voltage | 50V |
| Operating Temperature | -55℃ ~ +125℃ |
| Plating - Upper Layer | TiW-Au, 4.0µm Min |
| Plating - Bottom Layer | Ti-Pt-Au, 0.5µm Min |
| Overall Dimensions | 0.3*0.38*0.15 |
| Storage Conditions | 20-25℃, 40%-60% Relative Humidity |

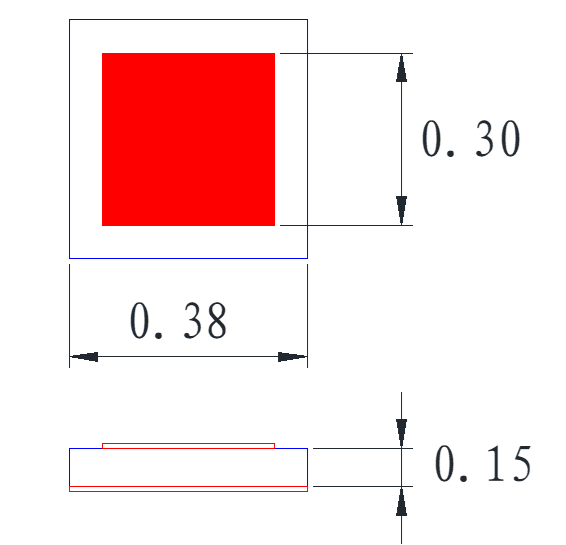

Overall Dimensions
Remarks：
1. Storage Conditions: 20-25℃, 40%-60% Relative Humidity;
2. Shelf Life: 1 year after delivery under the specified storage conditions;
3. Suitable for bonding process, matching conductive adhesive H20E, baking at 120℃ for 30 minutes;
4. The welding position of the welding wire shall be 25µm or more from the edge of the electrode to avoid electrode falling off.
