The 91MCC220G chip capacitor is a professional high-frequency electronic component. The single-sided edge reserved design is suitable for various precision bonding processes, with accurate capacitance and excellent temperature drift characteristics. The wide temperature working range meets the stringent application requirements of various scenarios such as industry and electronic equipment. The precious metal multi-layer plating process ensures the electrical conductivity and structural stability of the product, effectively avoiding the problem of electrode falling off. There are clear process guidelines for welding operation, reducing the rate of application errors. At the same time, the product has strict storage standards and a 1-year shelf life, which can effectively ensure the performance stability during storage and service life, and it is a high-quality capacitor component in precision electronic circuits.
| Name | Chip Capacitor |
| Model | 91MCC220G |
| Type | Single-sided Edge Reserved Type |
| Capacitance | 22pF±20%@1kHz,1Vrms,25°C,No DC Bias |
| Withstand Voltage | 50V |
| Operating Temperature | -55℃~+125℃ |
| Plating - Upper Layer | TiW-Au 2.5µm Min |
| Plating - Bottom Layer | TiW-Pt-Au 2.5µm Min |

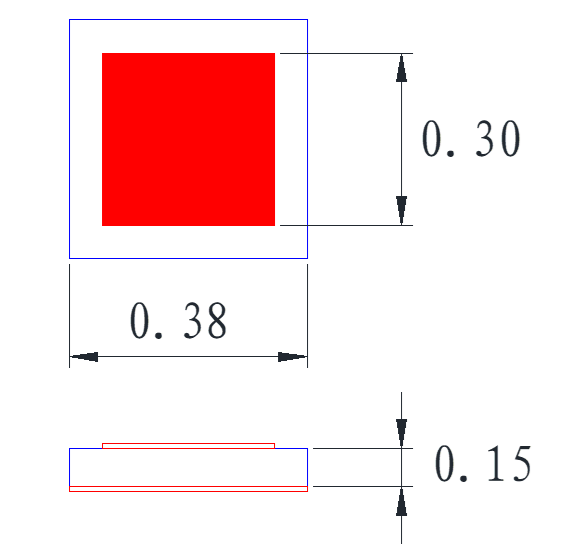

Overall Dimensions
Remarks:
Storage Conditions: 20-25℃, 40%-60% humidity;
Shelf Life: 1 year after delivery under storage conditions;
Suitable for bonding process, conductive adhesive H20E, baking at 120℃ for 30 minutes;
The welding position of the welding wire should be 25µm or more away from the electrode edge to avoid electrode falling off.
