This 91MCC331G chip capacitor features a single-sided edge reserved design with stable core electrical performance parameters. The capacitance tolerance of 330pF is precisely controlled within ±20%, and the 16V withstand voltage meets the usage requirements of conventional circuits. Its wide temperature operating characteristic enables it to work normally in harsh temperature environments from -55℃ to +125℃. The plating adopts high-spec precious metal materials, and the combination of different platings on the upper and lower layers balances conductivity and adhesion. It is suitable for professional bonding processes with easy operation. The product has clear storage and usage specifications, and strict compliance with the specifications can effectively ensure the service life and use effect of the product, making it a high-quality capacitor accessory for precision electronic circuits and chip-related applications.
| Name | Chip Capacitor |
| Model | 91MCC331G |
| Type | Single-sided Edge Reserved Type |
| Capacitance | 330pF±20%@1kHz,1Vrms,25°C,No DC Bias |
| Withstand Voltage | 16V |
| Operating Temperature | -55℃ ~ +125℃ |
| Plating - Upper Layer | TiW-Au 4.0µm Min |
| Plating - Bottom Layer | TiW-Pt-Au 0.5µm Min |

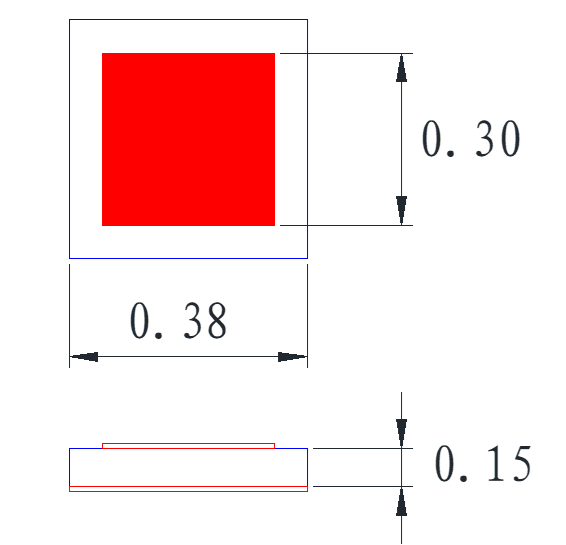

Overall Dimensions
Remarks:
Storage Conditions: 20-25℃, 40%-60% humidity;
Shelf Life: 1 year after delivery under storage conditions;
Suitable for bonding process, conductive adhesive H20E, baking at 120℃ for 30 minutes;
The welding position of the welding wire should be 25µm or more away from the electrode edge to avoid electrode falling off.
