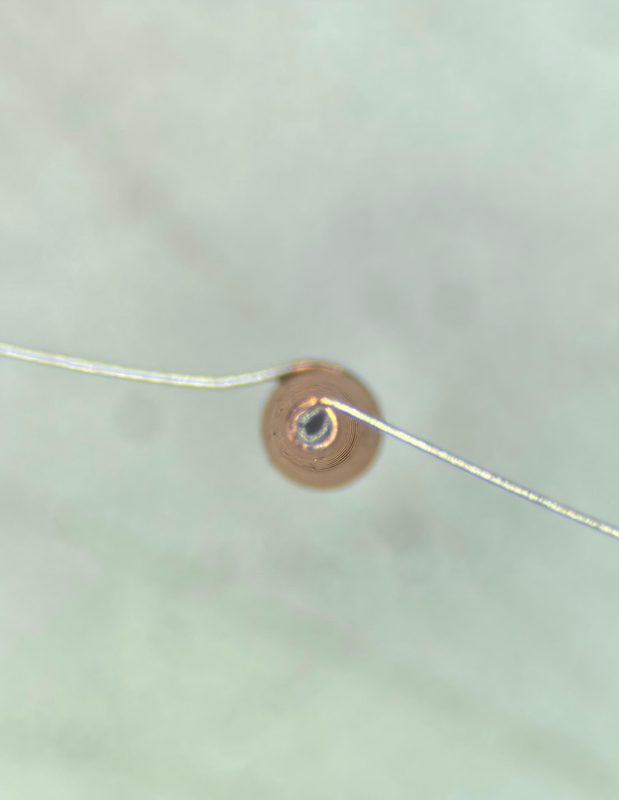

The HAMLT4000503R tapered inductor is a special electronic component for the high-frequency RF field with excellent core parameter performance. Its inductance is precisely controlled at 550nH±20%, the wire diameter is 0.05mm, and the maximum rated current is 200mA, which can meet the current carrying requirements of high-frequency circuits. The product supports an ultra-wide operating frequency of 50MHz-40GHz and has strong temperature adaptability, able to operate stably in a wide temperature range from -55℃ to +125℃, suitable for various complex working environments.
This inductor is applicable to wave soldering process with clear storage environmental requirements, and has a shelf life of 1 year after delivery when stored at 20-25℃ with 40%-60% humidity. There are standard assembly requirements: the taper tip must face the RF signal transmission line vertically, the lead wire at the transmission line end should be as short as possible, and it must be fixed with glue to ensure assembly stability.
Actual test data shows that it has excellent S21, S11 and SWR indicators in 10MHz-500MHz and 10MHz-20GHz frequency bands, and the 40GHz band data can be for reference. It is an ideal supporting component for RF signal transmission and high-frequency circuit construction.

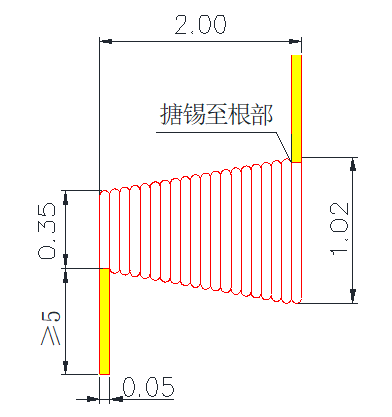

| Name | Tapered Inductor |
| Model | HAMLT4000503R |
| Inductance | 550nH±20% |
| Wire Diameter | 0.05mm |
| Maximum Withstand Current | 200mA |
| Operating Frequency | 50MHz-40GHz |
| Operating Temperature | -55℃∽+125℃ |
Storage conditions: 20-25℃, 40%-60% humidity;
Shelf life: 1 year after delivery under the above storage conditions;
Suitable for tape welding process;
See the next page for assembly precautions and test data.
Assembly Precautions

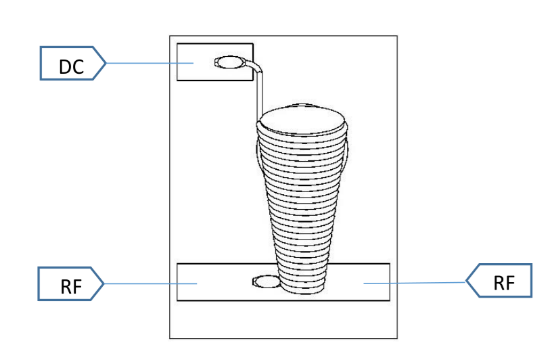

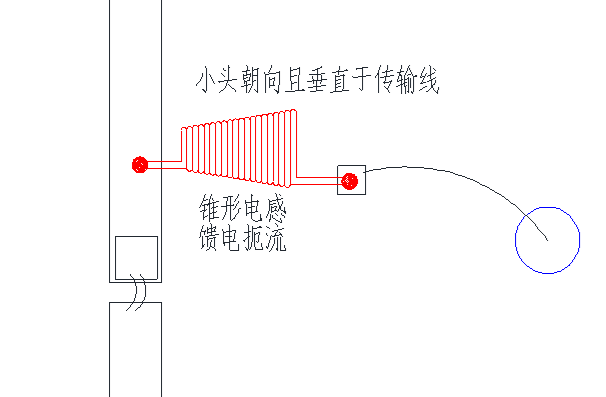

When assembling, the cone tip (small end) shall face and be perpendicular to the RF signal transmission line, the lead wire at the transmission line end shall be as short as possible, and the tapered inductor must be fixed with glue.

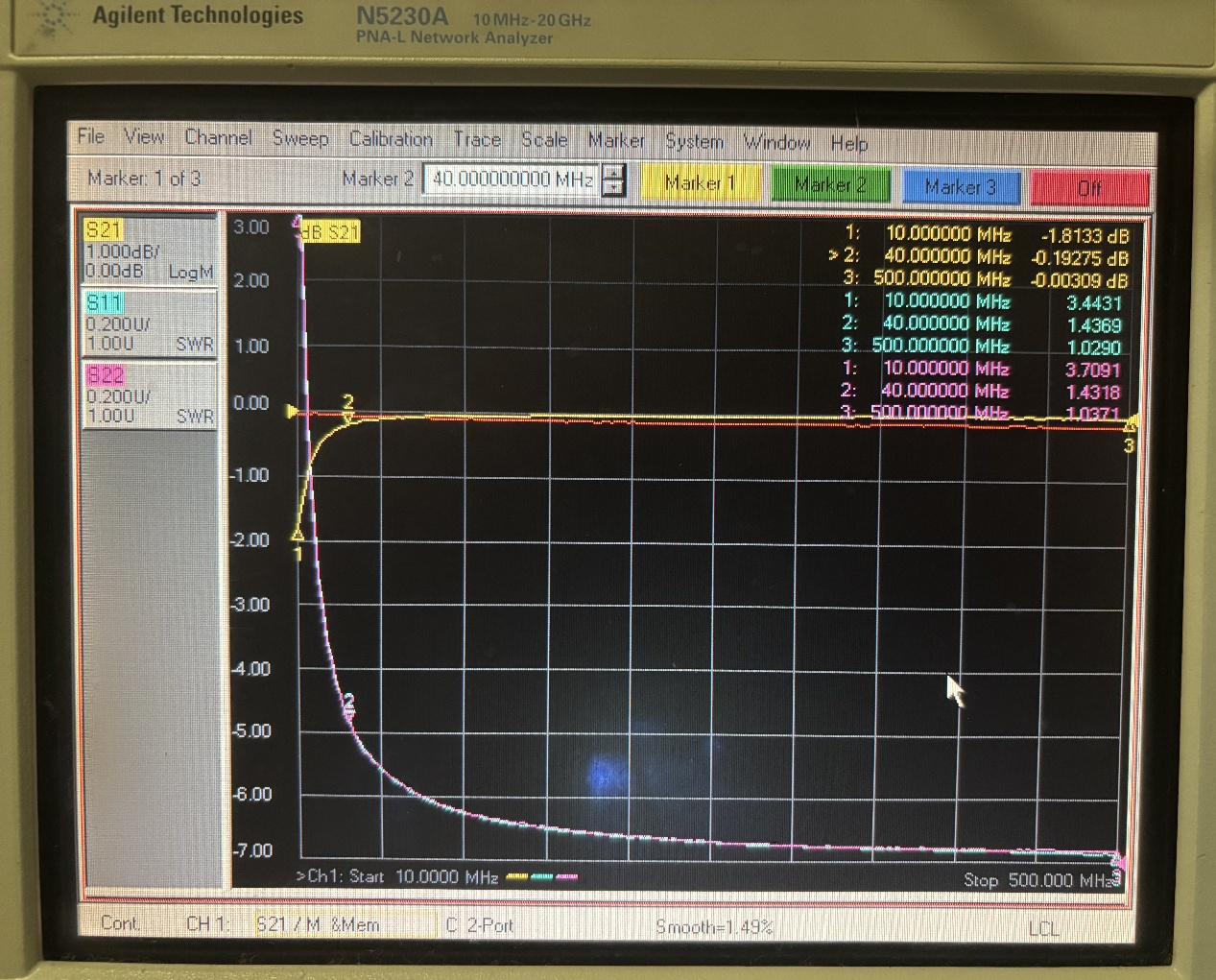

Test Data for 10MHz-500MHz

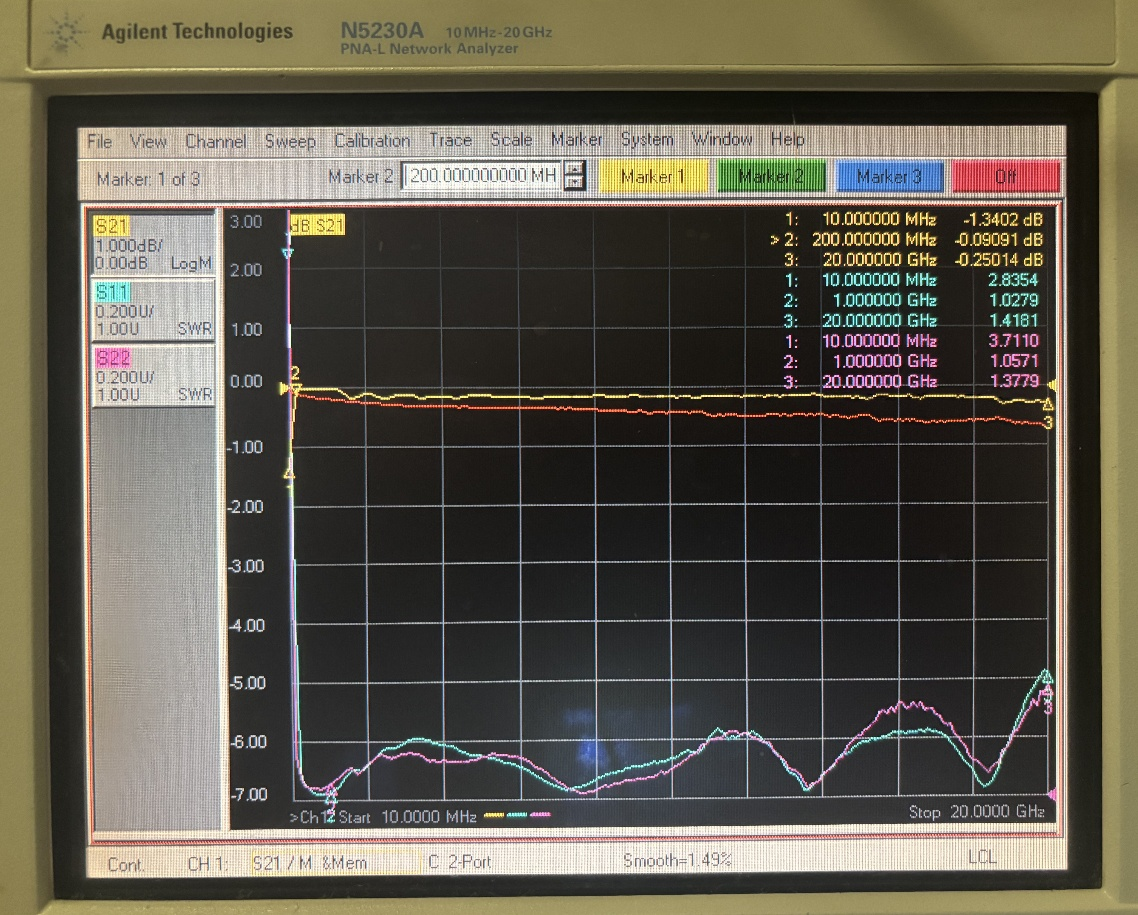

Test Data for 10MHz-20GHz
