The HAMLT2000803R tapered inductor is tailor-made for high-frequency RF applications with excellent core parameter performance. The inductance is precisely controlled at 130nH±20%, and the fine wire diameter of 0.08mm is combined with a maximum withstand current of 500mA, balancing miniaturization and circuit bearing requirements. With an operating frequency of up to 200MHz-22GHz, its ultra-wideband characteristics are suitable for various RF circuit designs. The wide temperature range of -55℃~+125℃ enables stable operation in extreme high and low temperature environments. The product is designed with a soldering process and has clear assembly specifications: the cone tip is oriented and perpendicular to the RF signal transmission line, the lead at the transmission line end should be as short as possible, and it needs to be fixed with glue to ensure the stability of circuit connection. Tested by a professional vector network analyzer, the signal transmission loss in the 10MHz-500MHz frequency band decreases gradually, the loss in the 10MHz-20GHz frequency band remains at a low level, the standing wave ratio performance is excellent, and the RF performance is stable. The test in the 10MHz-40GHz frequency band is for reference only, and the whole product is suitable for RF circuit applications such as feed chokes. The product storage needs to meet the conditions of 20-25℃ and 40%-60% humidity, with a shelf life of 1 year after delivery, guaranteed quality, and it is a core supporting component for high-frequency RF equipment.
| Name | Tapered Inductor |
| Model | HAMLT2000803R |
| Inductance | 130nH±20% |

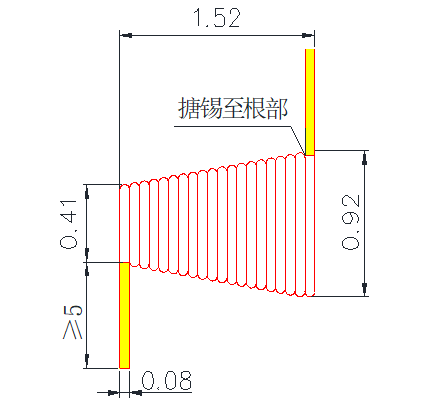

| Wire Diameter | 0.08mm |
| Maximum Withstand Current | 500mA |
| Operating Frequency | 200MHz-22GHz |
| Operating Temperature | -55℃~+125℃ |
Storage conditions: 20-25℃, 40%-60% humidity;
Shelf life: 1 year after delivery under the above storage conditions;
Suitable for tape welding process;
See the next page for assembly precautions and test data.
Assembly Precautions

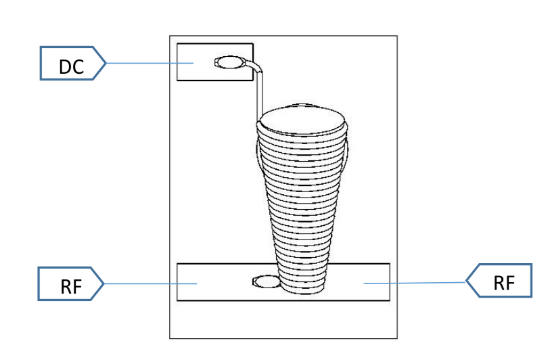

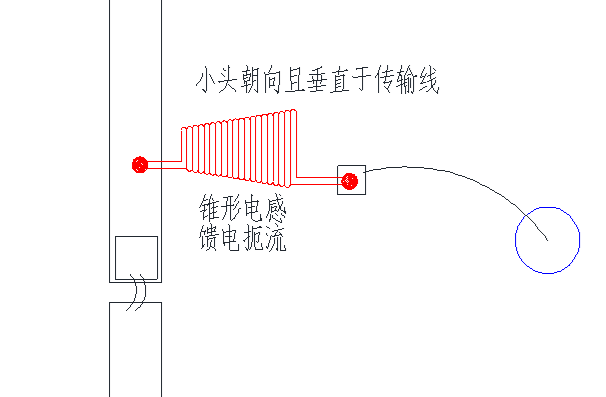

When assembling, the cone tip (small end) shall face and be perpendicular to the RF signal transmission line, the lead wire at the transmission line end shall be as short as possible, and the tapered inductor must be fixed with glue.

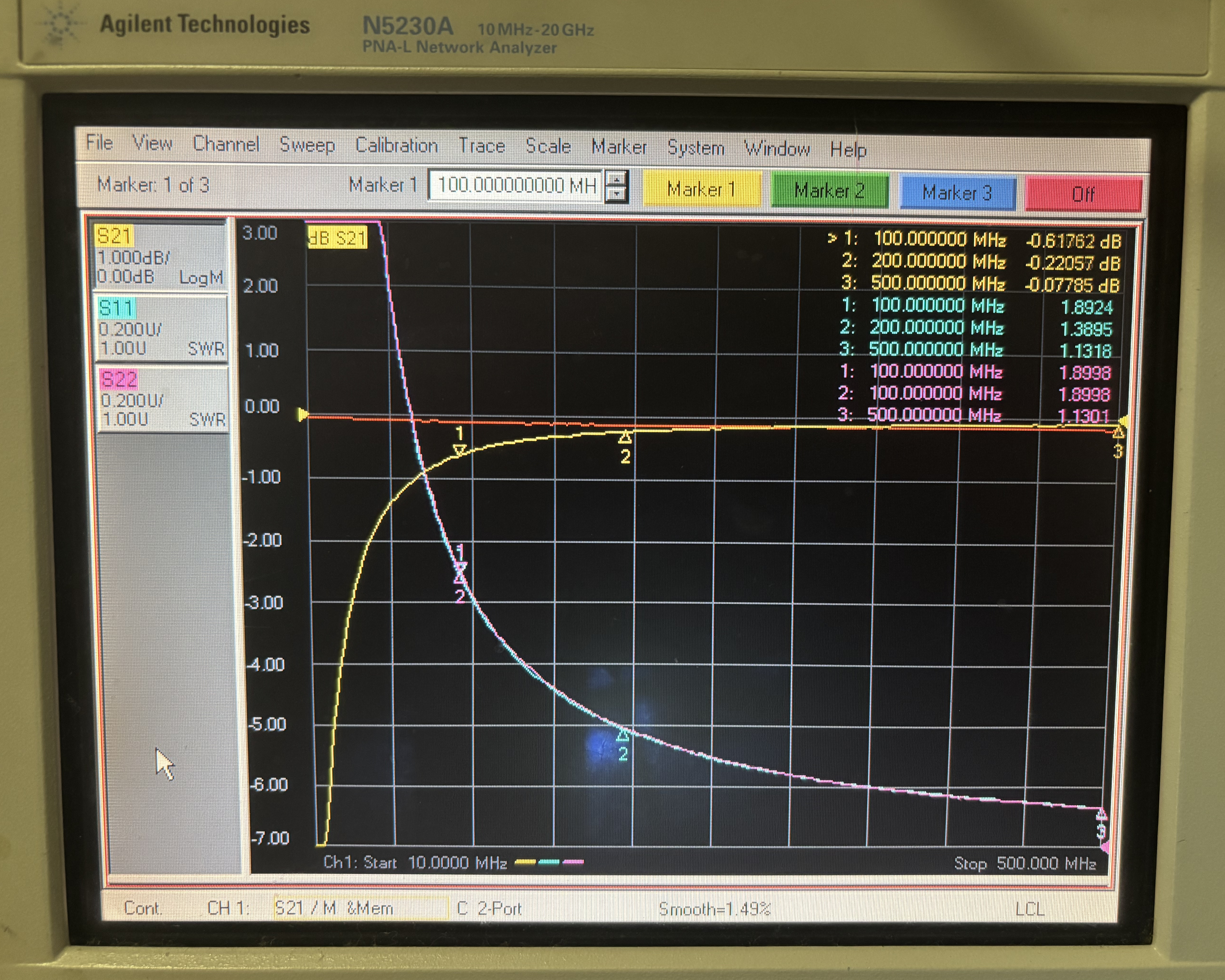

Test Data for 10MHz-500MHz

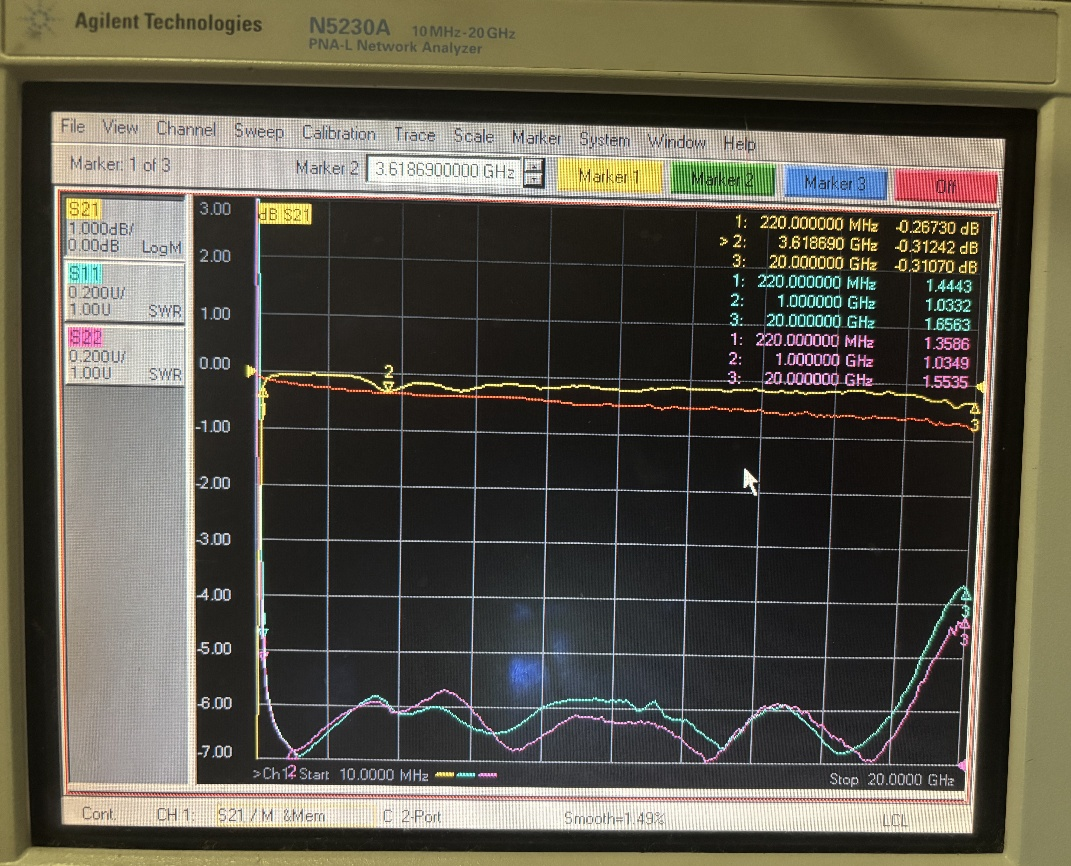

Test Data for 10MHz-20GHz
